Compact collar tracking

M10 4G Pet GPS Tracker

M10 is the compact wearable locator in the range. Its IP68-rated enclosure, 4G connectivity, four-mode positioning, and collar-oriented form factor support pet brands and service operators building a location product around an app or platform.

Request project quote Check specifications

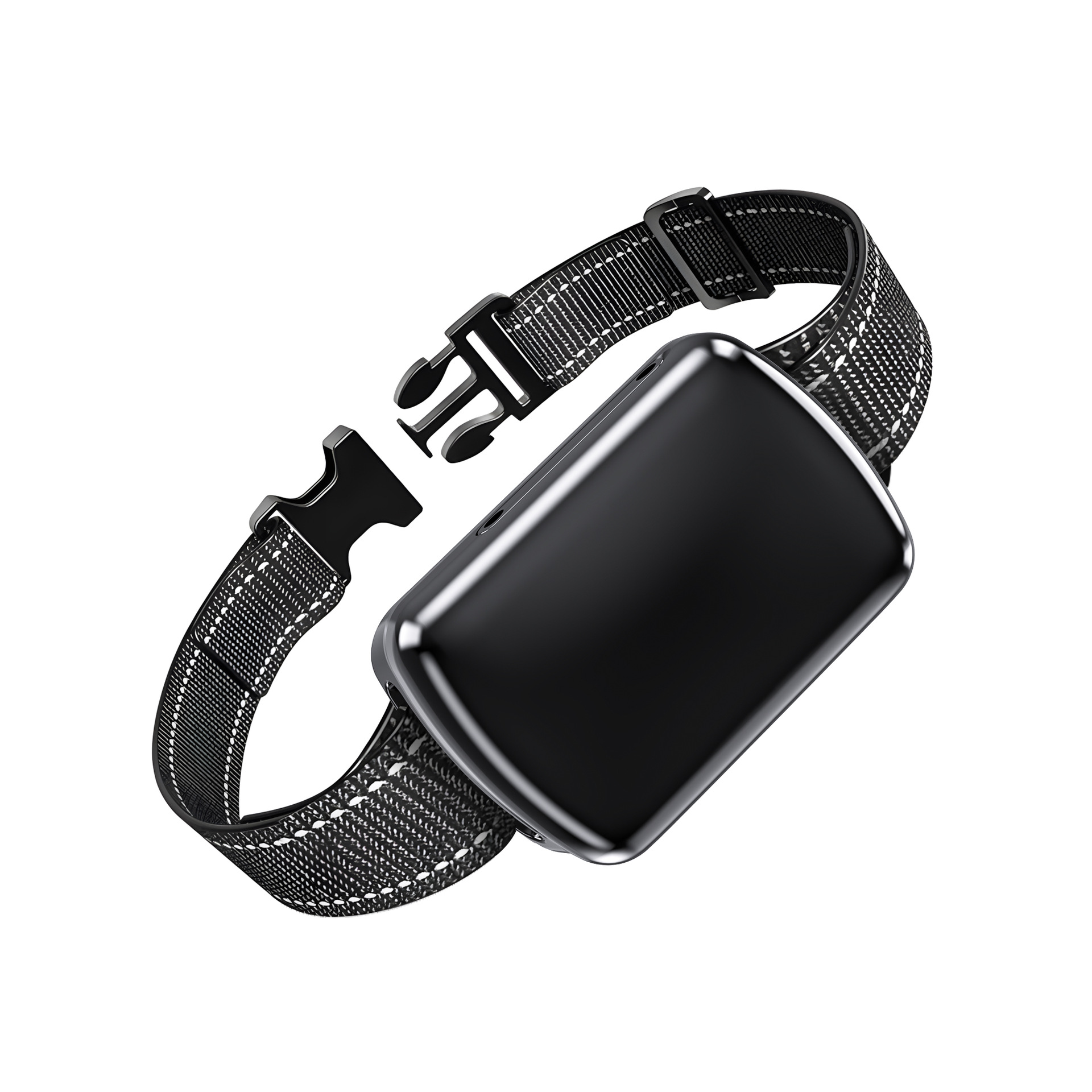

M10 4G pet GPS tracker attached to collar

M10

Battery: 500mAh
Water resistance: IP68
Connectivity: 4G

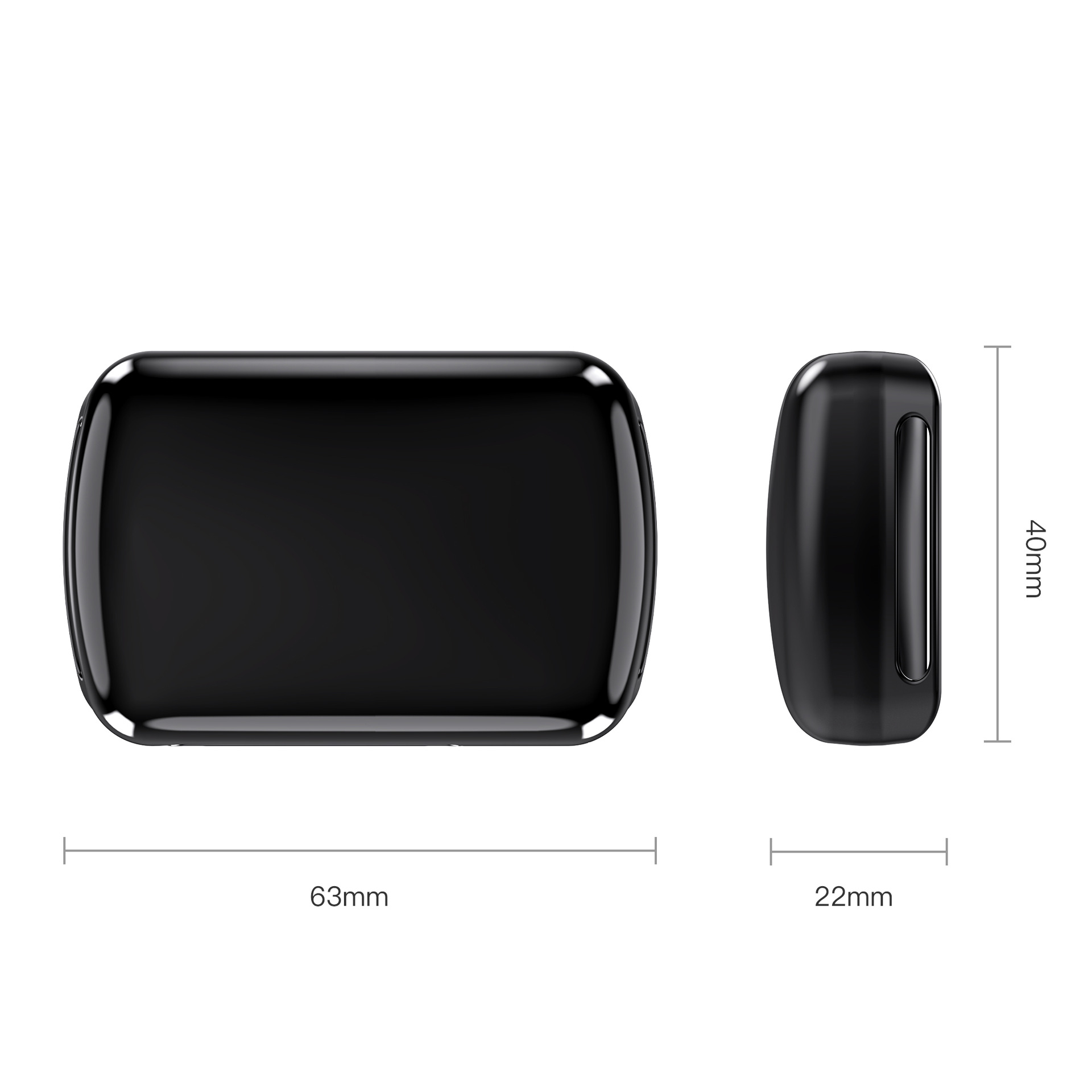

Housing: 63 x 40 x 22mm

Deployment fit

Where M10 earns its place.

Compact IP68 4G pet tracker with GPS, BeiDou, Wi-Fi, and LBS positioning in a 63 x 40 x 22mm collar-ready housing.

01Pet tracker brands
02Animal welfare programs
03Outdoor companion products
04Subscription tracking services

System capabilities

Hardware facts connected to an operating workflow.

Collar-ready form

The compact enclosure and attachment points are designed for wearable pet tracking projects.

IP68 enclosure

The supplied specification lists IP68 protection for outdoor use and wet conditions.

Four-mode location

GPS, BeiDou, Wi-Fi, and LBS combine outdoor tracking with network-based fallback.

Brand program support

Discuss app language, labels, packaging, manuals, and platform integration for private-label projects.

Hardware inspection

One device, shown with a consistent visual standard.

Clean enclosure views come first so shape, ports, thickness, and mounting details can be compared without promotional graphics competing for attention.

Product in context

See the hardware beyond a white background.

Selected English product visuals show the installation, positioning, alert, or package context most relevant to this model.

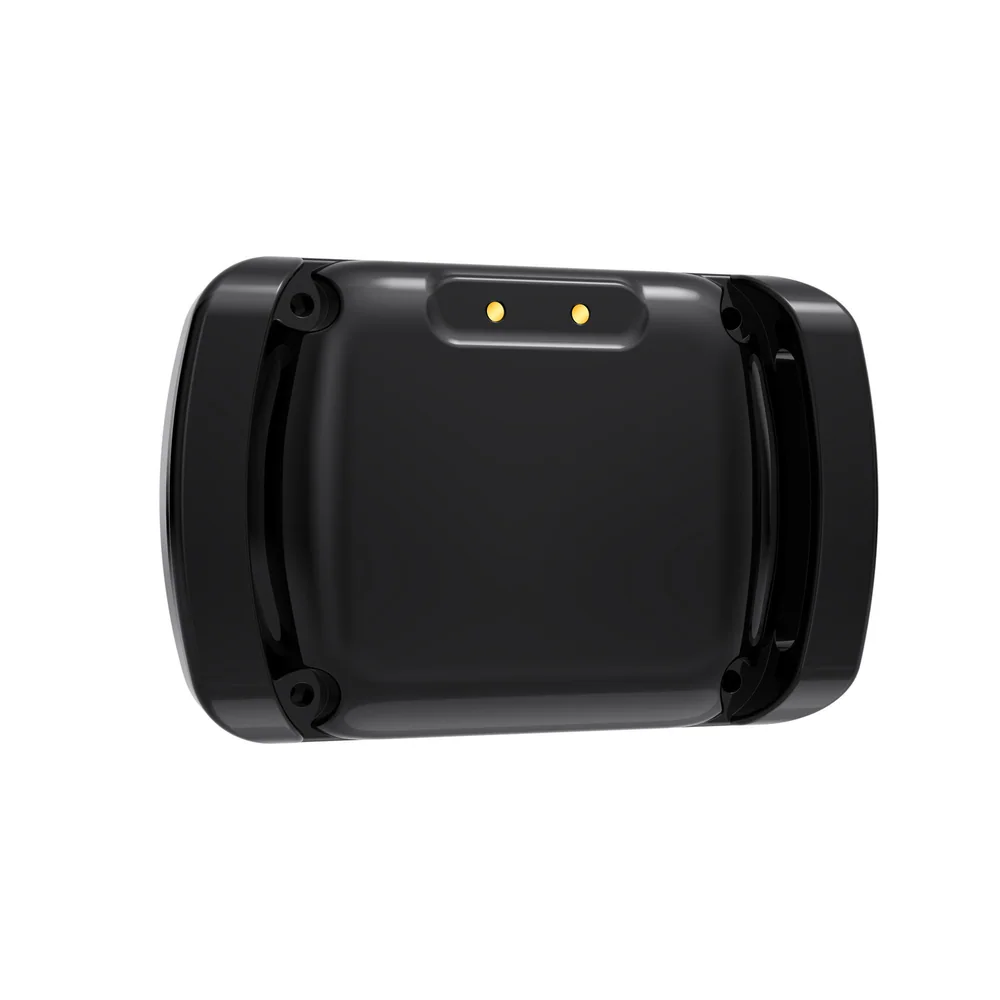

M10 rear enclosure and magnetic charging contacts — 01Charging contacts

02Side profile

Visual references are selected from the supplied English product materials. Final functions, bands, accessories, and project configuration are confirmed against the approved sample and purchase order.

Software context

The device is only half of the operating picture.

Platform screens are presented separately from product photography, making it clear which evidence describes the enclosure and which describes the monitoring workflow.

Technical specification

What is confirmed, in one place.

Final cellular bands, protocol, certifications, and software scope are confirmed against the destination market and purchase order.

Dimensions63 x 40 x 22mm

Battery500mAh rechargeable battery

PositioningGPS / BeiDou / Wi-Fi / LBS

Network4G regional configuration

Water resistanceIP68 (as listed in supplied specification)

ChargingMagnetic charging contacts

MaterialABS enclosure

Sample gate

Do not approve a tracker from a render alone.

Network

Verify the exact SIM, carrier, LTE bands, registration, and fallback behavior in the destination market.

Location

Test cold start, route accuracy, indoor fallback, geofence delay, and event delivery on representative routes.

Runtime

Measure battery behavior using the real reporting interval, signal conditions, movement, and alarm settings.

Platform

Confirm accounts, maps, exports, API or protocol scope, languages, retention, and alert ownership.

Buyer questions

Before you request M10 samples.

Is M10 waterproof?

The supplied product specification lists IP68. For a regulated tender or formal claim, request the matching report for the exact production configuration.

Can M10 be white-labelled?

Private-label scope can include product labels, packaging, manuals, app language, and platform branding. Final options depend on order volume and software scope.

Does it work indoors?

GPS is primarily outdoor positioning. Wi-Fi and LBS provide fallback location context where satellite reception is limited, with lower accuracy than outdoor GNSS.

Project inquiry

Scope M10 against your market.

Include country, carrier, quantity, reporting interval, platform requirements, certifications, and launch timing. The more specific the input, the more useful the first reply.

Review buyer resources first
