IP68 Immersion Test
Dust-sealed housing and 1.5 m / 30 min immersion validation for rain, washing, and outdoor deployment.

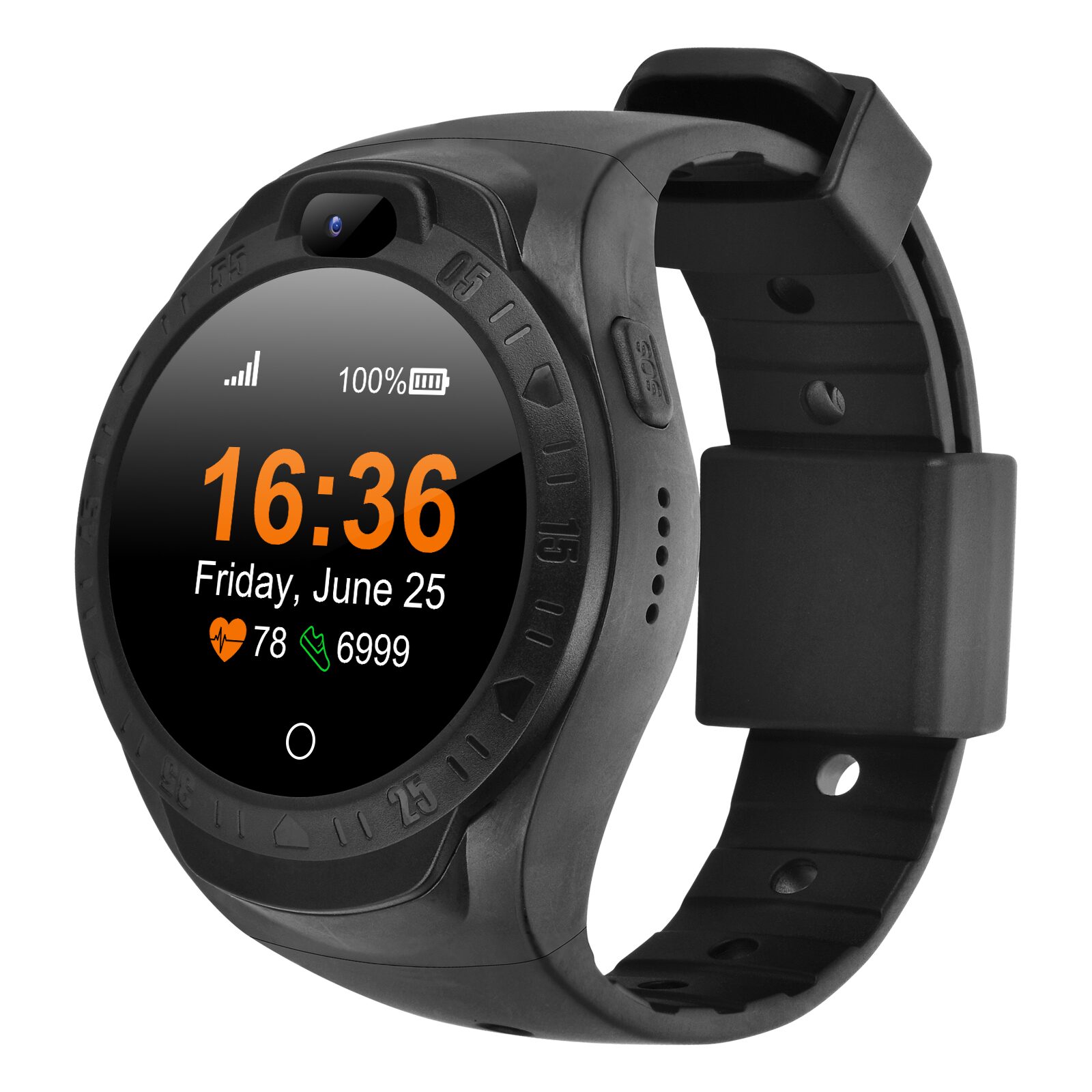

4G GPS Tracking Watch
Built for
B2B Tracker Distributors
Across 50+ Countries
4G LTE Cat-1 with multi-mode positioning (5–10 m), IP68 (1.5 m / 30 min), capacitive anti-tamper buckle, and 300 h standby. MOQ 100 units, 25–35 day lead time, CCC + ROHS + IP68 certified.
IP68
Waterproof Rating
300h
Standby Time
5-10m
GPS Accuracy
Anti-Disassembly
Secure Design
Core Features
Six Capabilities Distributors Ask About
Multi-mode positioning, LTE Cat-1, IP68, anti-tamper, health metrics, remote control — the six the platform actually delivers in the field.
4G Full Network Support
Supports FDD/TDD LTE, WCDMA, and GSM networks worldwide. Compatible with carriers in over 180 countries.
Multi-Mode Positioning
GPS / BeiDou / GLONASS / LBS / Wi-Fi positioning with 5–10m outdoor accuracy. Reliable tracking both indoors and outdoors.
Anti-Disassembly Design
Special buckle, hidden screws, and waterproof cover prevent unauthorized removal. Real-time tamper alerts to caregivers.
IP68 Waterproof
Complete dust protection and water immersion up to 1.5m for 30 minutes. Built for all weather conditions.
Health Monitoring
4 health metrics with caregiver-set thresholds: heart rate (5-min sampling), SpO₂ (±2% accuracy), blood pressure, and body temperature (±0.3°C). Out-of-range readings push real-time alerts.
Remote Control
VoLTE two-way calling, 3-second long-press SOS to up to 5 caregivers, remote photo capture, and 30-second audio snippets — all triggered from the companion app over 4G LTE.
Functional Capabilities
What Makes the A9 Hold Up in the Field
The hardware decisions that decide whether the device works on day 60 of deployment.

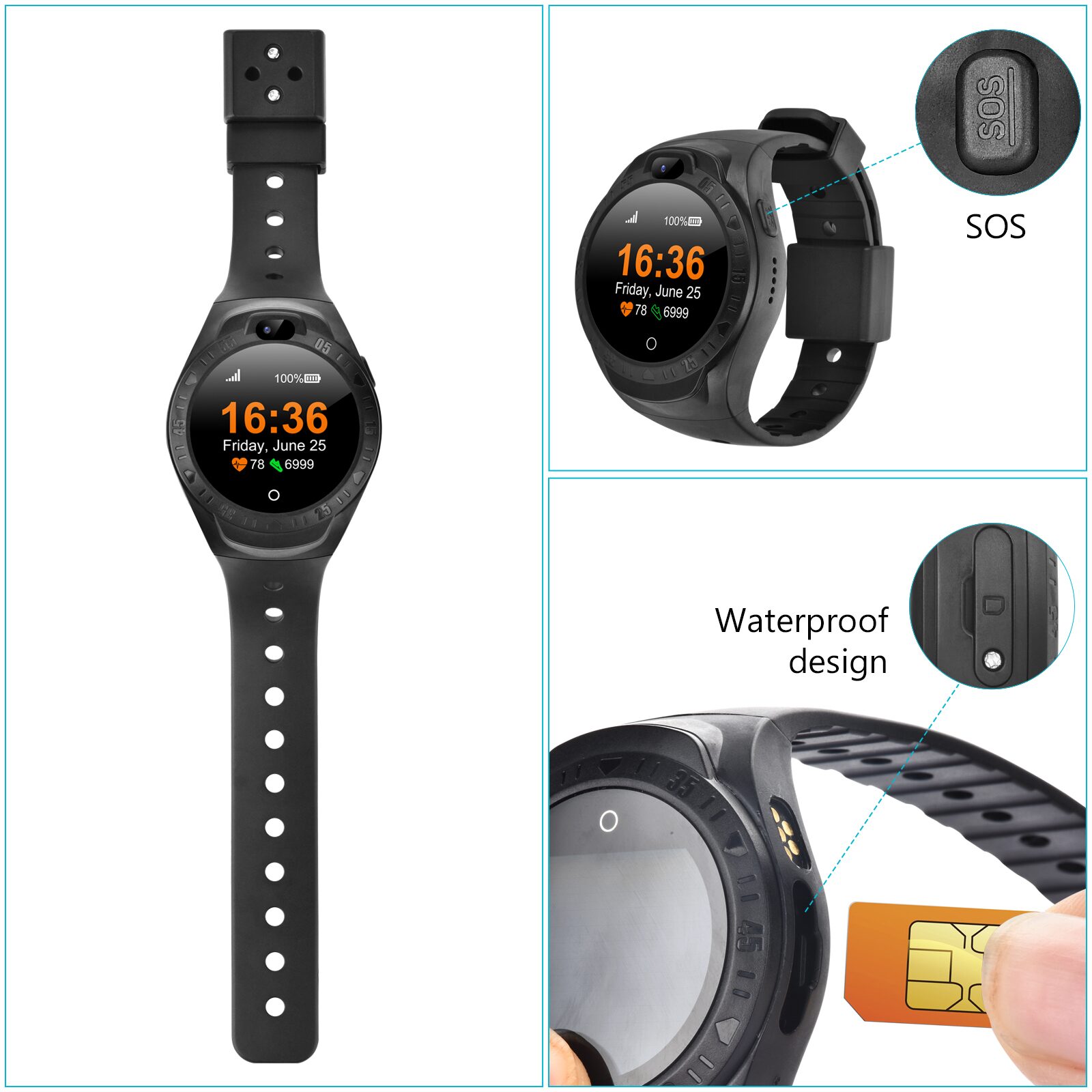

Every Angle, Built Right
Round 1.3" display, recessed lens, hidden tamper screws — engineered front-to-back.

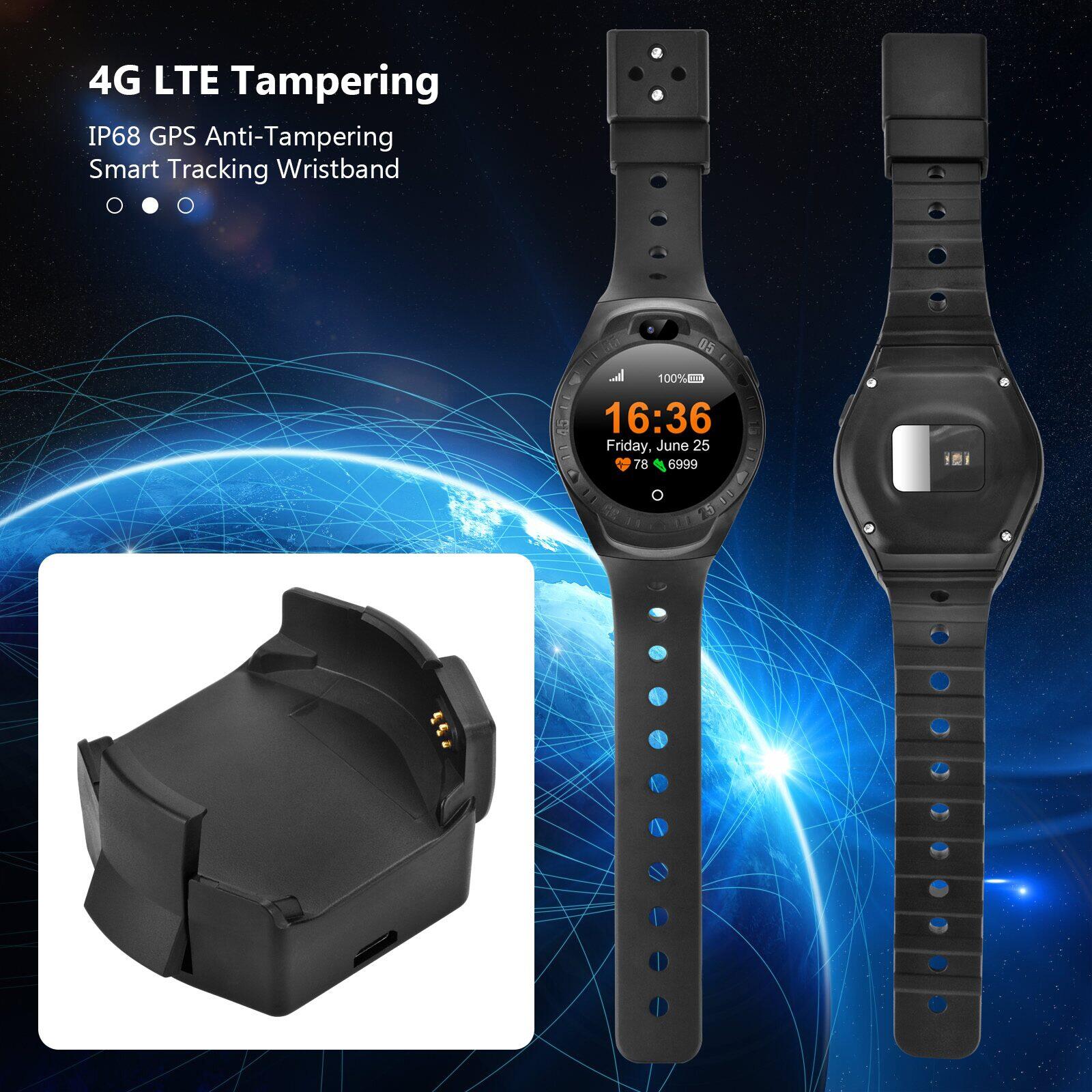

4G LTE Worldwide Coverage
FDD/TDD LTE Cat-1 with regional bands for 180+ countries. VoLTE-ready.

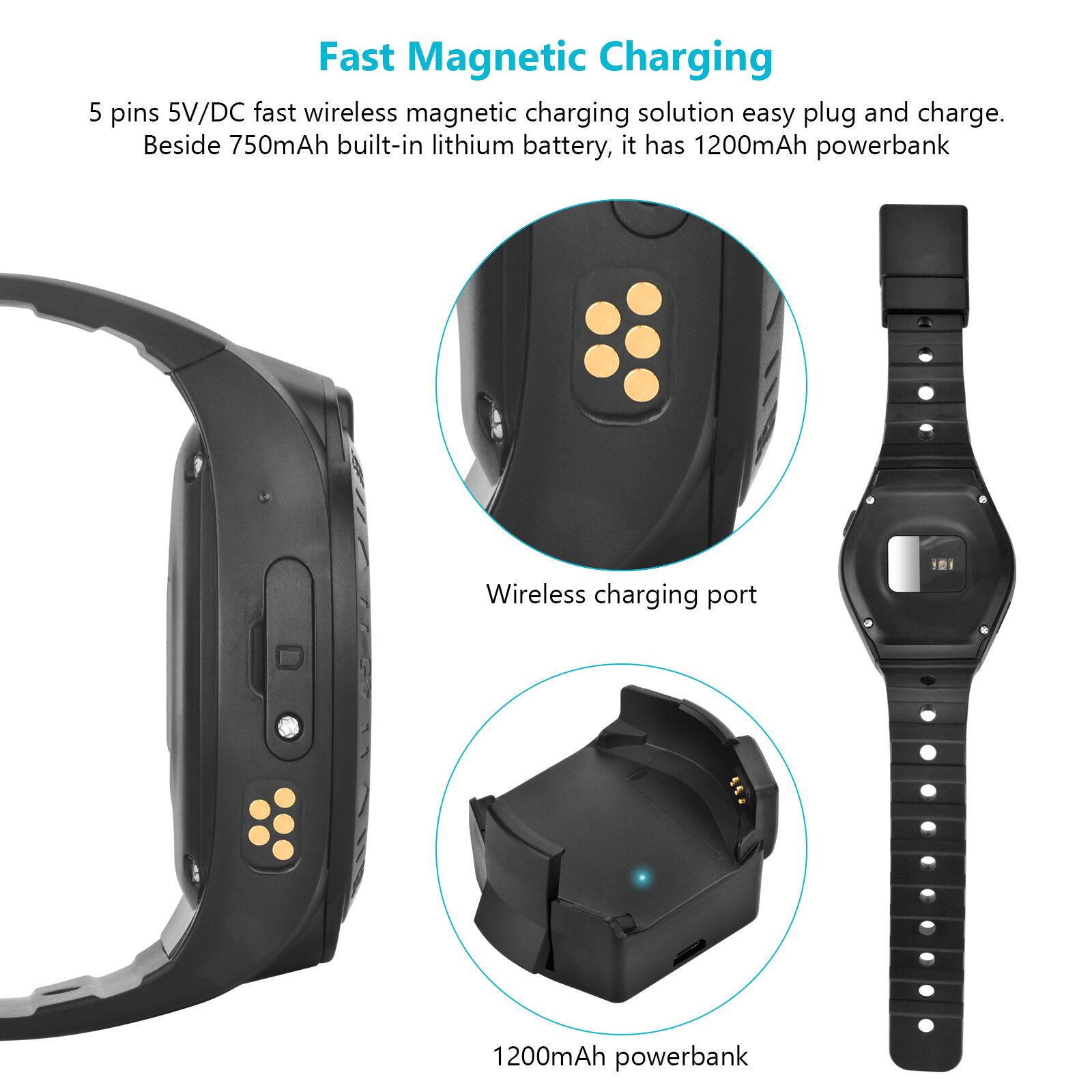

Magnetic Fast Charging
5-pin pogo dock with 1200mAh power bank — no charging port to fail.

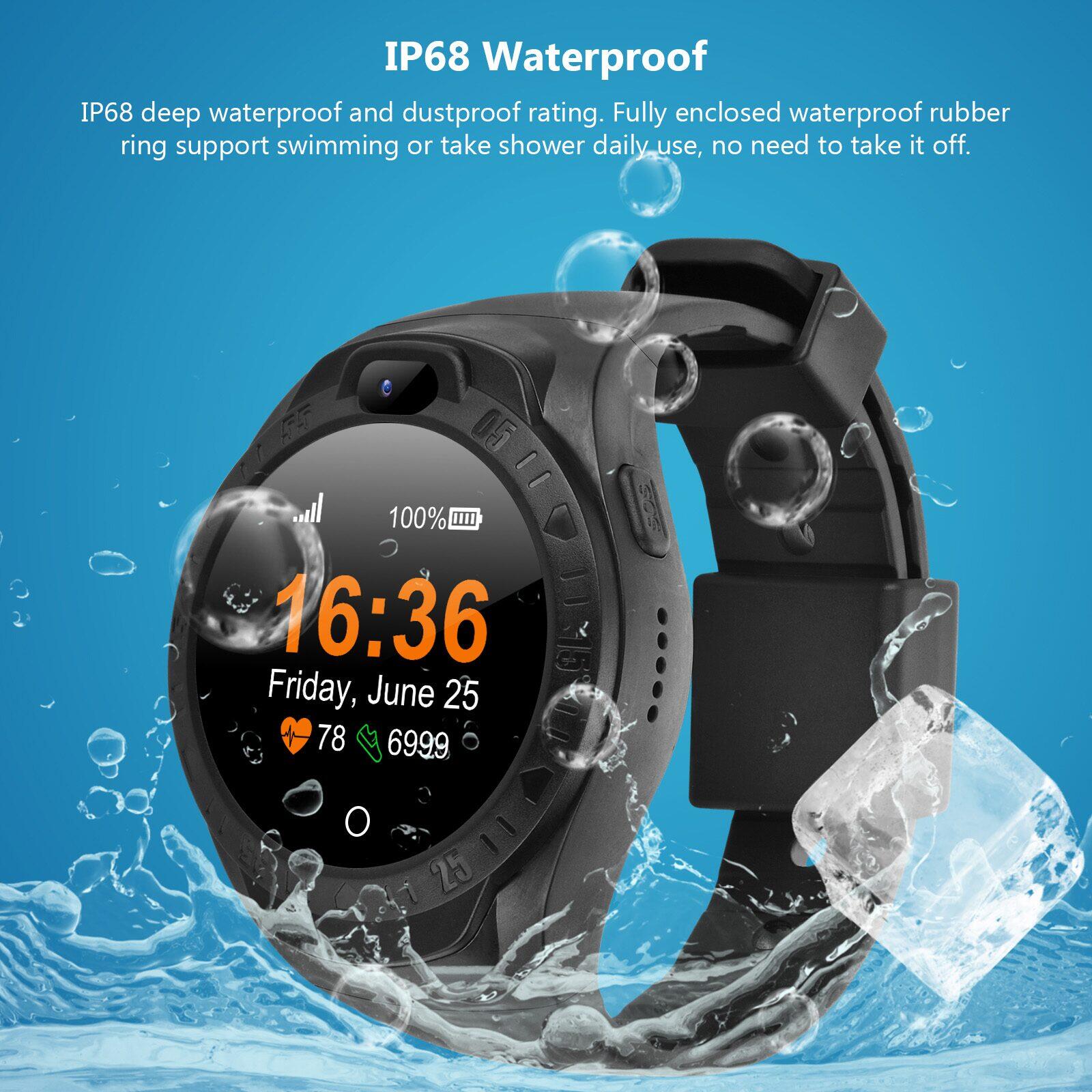

IP68 Deep Waterproof
1.5m / 30min immersion certified. Tested every batch, every gate.

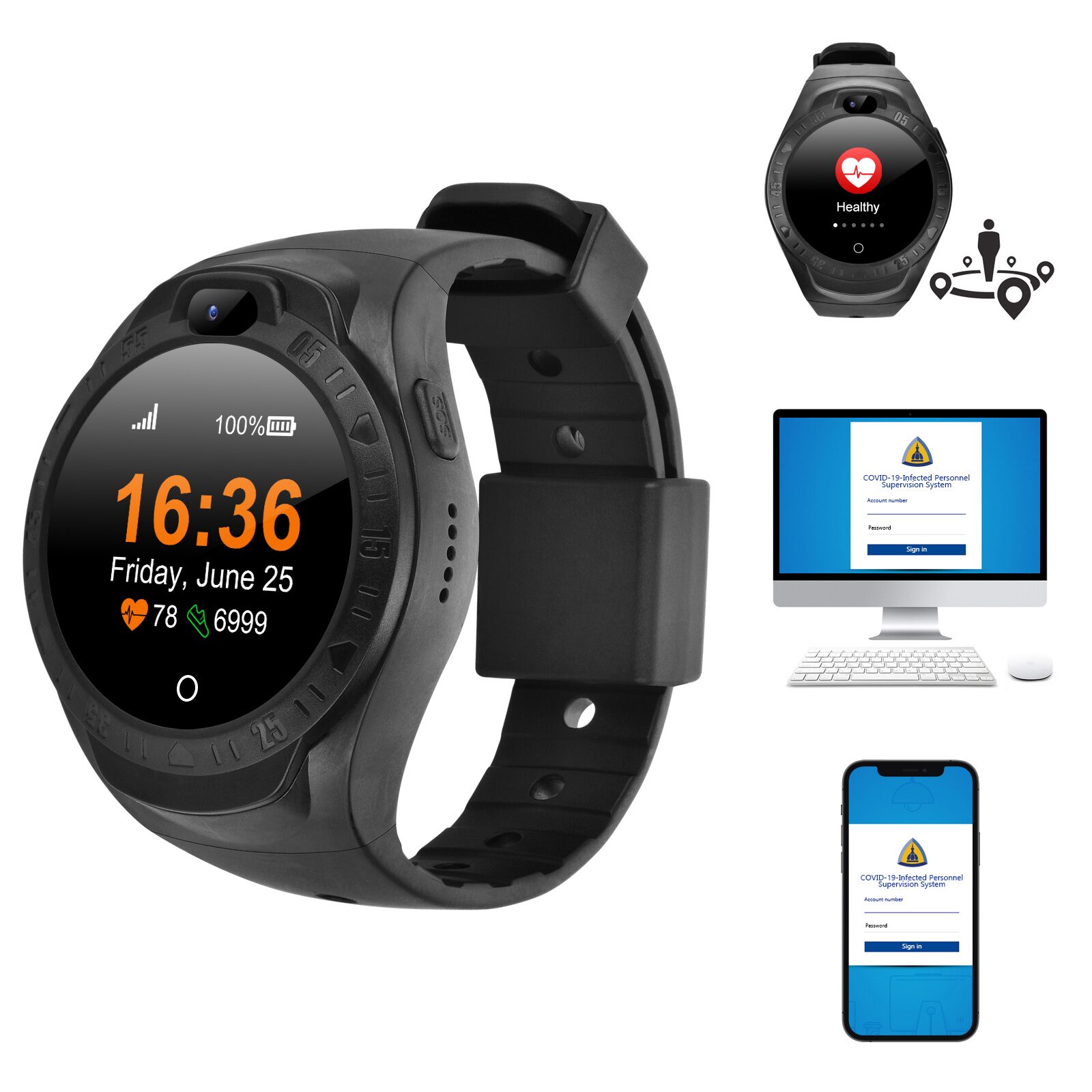

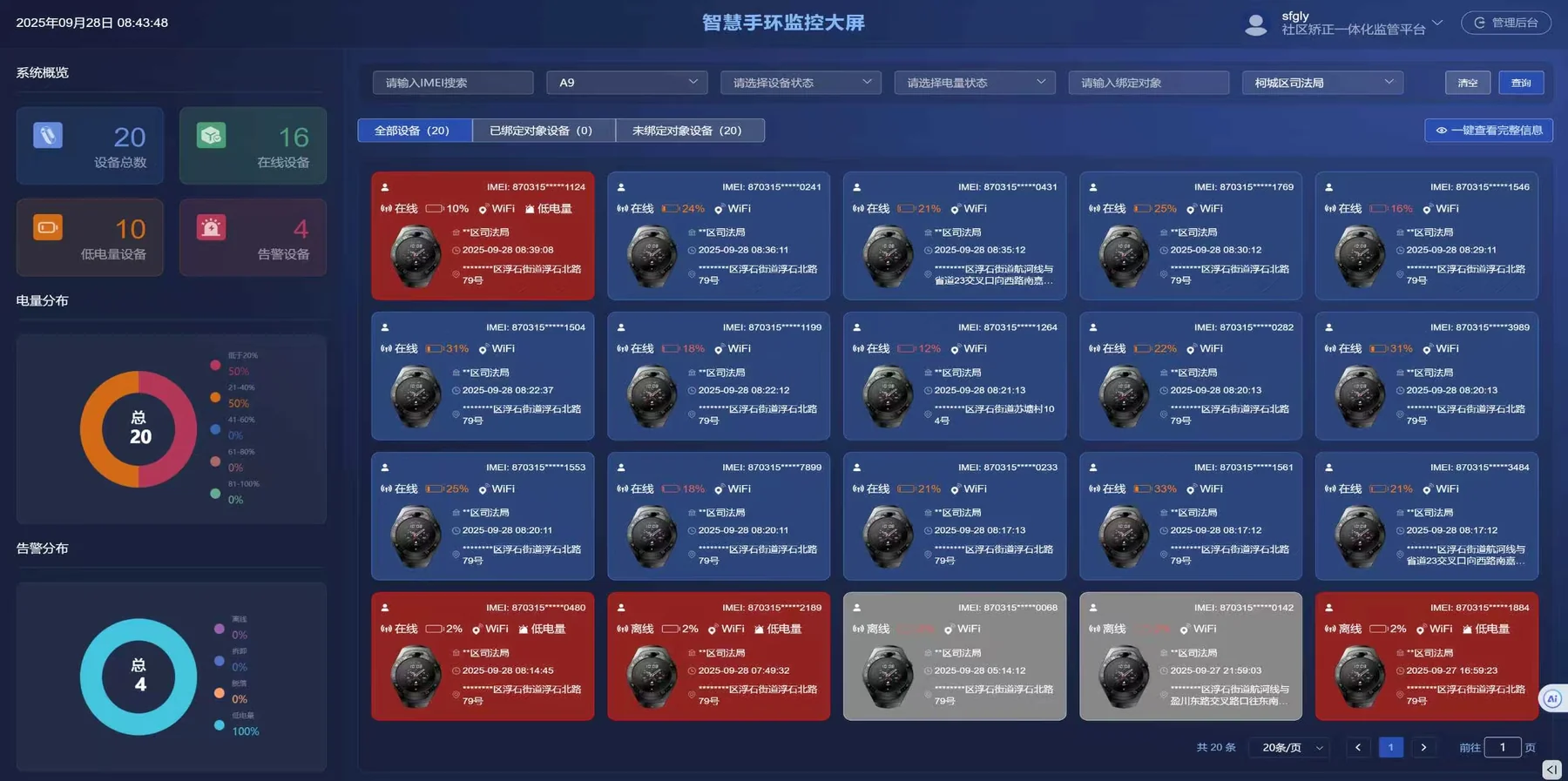

Watch + App + Console
Companion app (iOS/Android) and operator console — full B2B platform.
47×17mm
Compact Size
Technical Specs
Built for Performance
Network & Communication
Network Support 2G / 3G / 4G
4G Bands (EU) FDD: B1/B2/B3/B5/B7/B8/B20/B28A
Wi-Fi 2.4GHz 802.11 b/g/n
Bluetooth Supported (Customizable)
Hardware
Display 1.3" TFT 240×240
Battery (Watch) 760mAh Polymer
Battery (Power Bank) 1350mAh Polymer
Standby Time 300 hours
SIM Nano SIM (Single)
Positioning
GPS / BeiDou 5–10m accuracy
Wi-Fi Positioning 50–100m accuracy
LBS 100–1000m accuracy
Engineering
Engineering Details
Close-ups of the parts that decide whether the device works in the field.
Use Cases
Built for Operators Across Four Verticals
Elderly care, child safety, asset tracking, and judicial monitoring — same hardware, different SOS routing and reporting cadence.
Elderly Care
Heart rate, SpO₂, blood pressure, body temperature monitoring with caregiver-set thresholds. Fall detection + one-press SOS for adults living independently.
Child Safety
Geo-fence by school / home / route. Two-way VoLTE calling and live location push to up to 5 caregivers. Tighter reporting during school hours.
Asset Tracking
Vehicles, high-value equipment, and luggage with tamper alerts and route replay. Global LTE Cat-1 coverage; per-fleet reporting cadence.
Judicial & Public Safety
Worn as ankle GPS tracker (ankle monitor / ankle bracelet form factor) for court-supervised release, community correction, drug rehab, and bail monitoring. Tamper alerts, geo-fence violations, and audit-ready route history. OEM-extended straps (28–32 cm) available.
Certifications
Quality You Can Trust
Comprehensive certifications ensuring safety, reliability, and compliance.
CCC Certified
ROHS Compliant
IP68 Waterproof
Quality Inspected

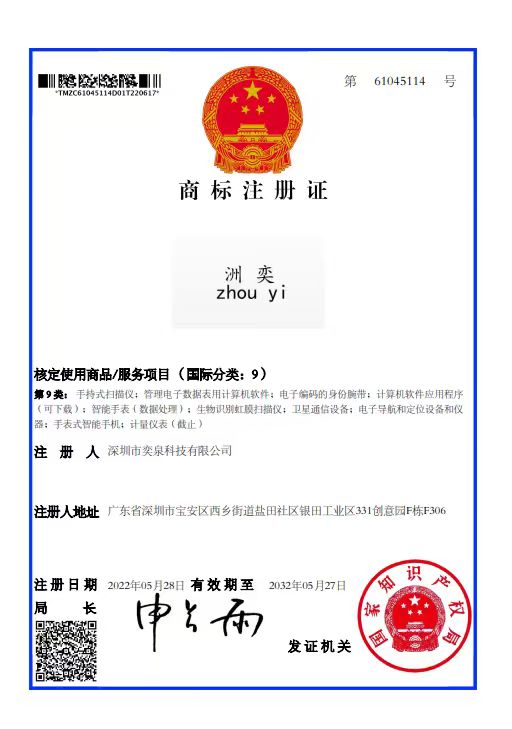

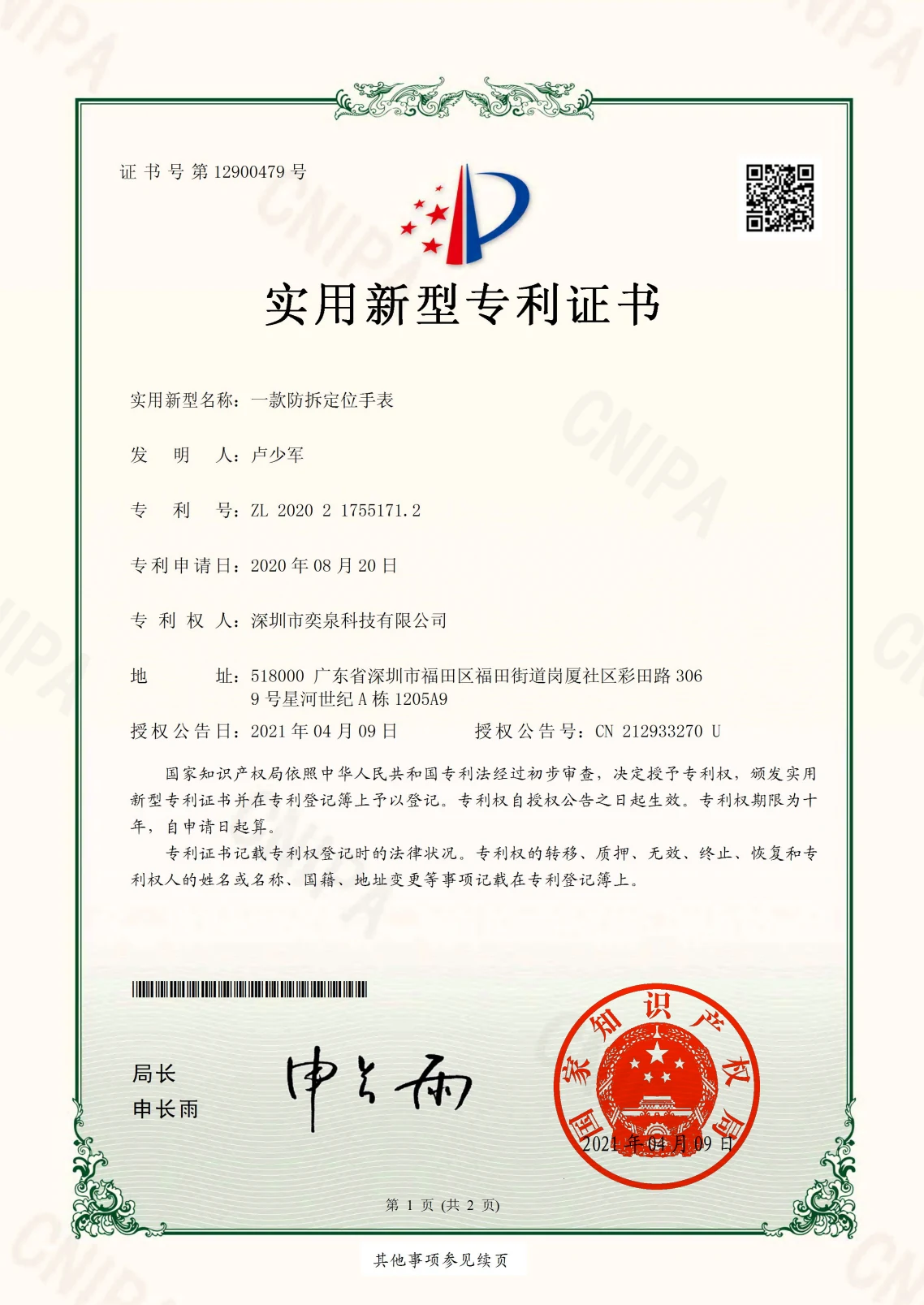

Patent Protected
Software Copyright
Buyer Evidence
Proof Points Buyers Can Verify
Certification status, field tests, anti-tamper hardware, and resource links are grouped here so procurement teams and search engines can inspect the same source of truth.
Standard certifications CCC / ROHS / IP68
Order scope Confirm by project
Production timing Quoted by PO scope
Sample request Confirm with sales

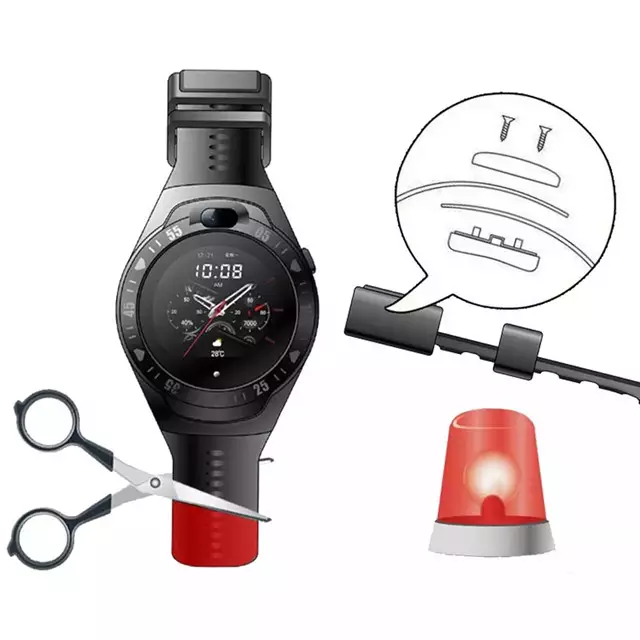

Anti-Tamper Buckle
Hidden screws, service-tool removal, skin-contact sensing, and open-circuit tamper alerts for monitored deployments.
Watch + App + Console

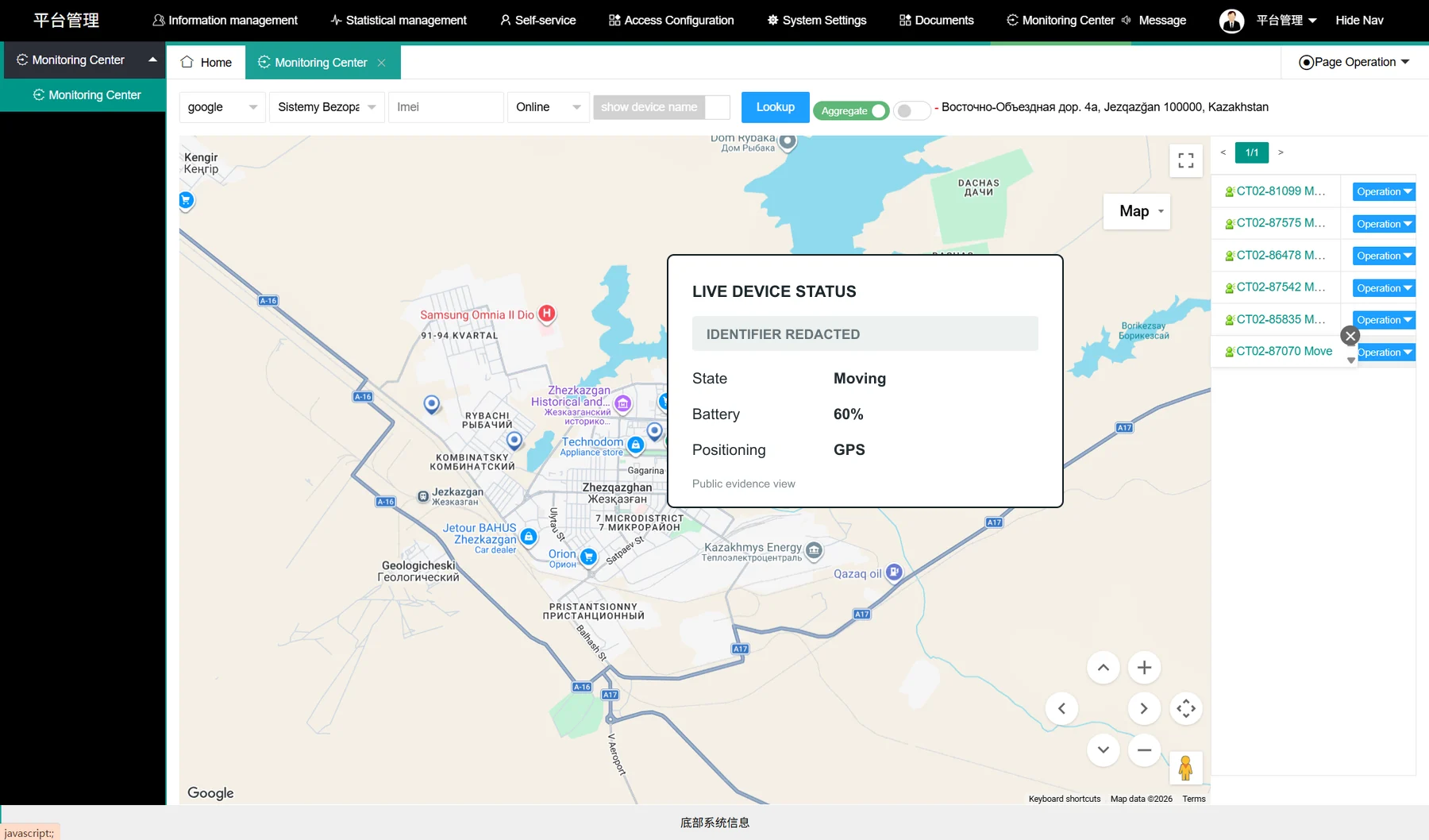

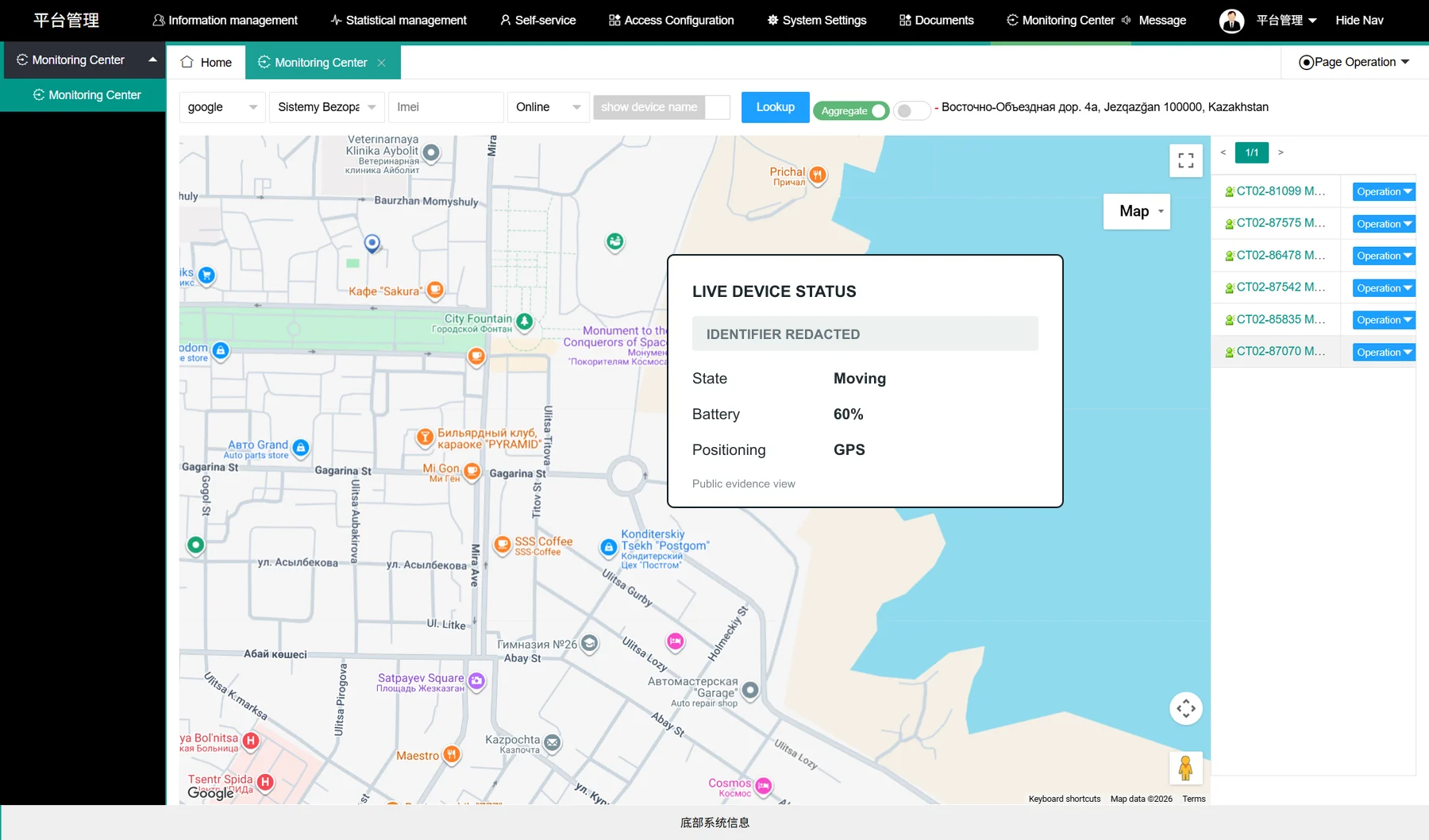

Device, caregiver app, and operator console work as one platform for location history, geofence events, and SOS routing.
Need files for internal review?
Share the datasheet and resource page with procurement, technical, or compliance teams before requesting samples.
Buyer Questions
Common Questions from B2B Buyers
Quick answers on MOQ, certifications, OEM/ODM, and the technical questions distributors ask before placing a sample order.
What is the A9 4G GPS tracking watch?
The A9 is a 4G LTE Cat-1 GPS tracking smart watch built for B2B distributors. It combines multi-mode positioning (GPS / BeiDou / GLONASS / Wi-Fi / LBS) with 5–10m outdoor accuracy, IP68 waterproofing (1.5m / 30 min), an anti-tamper buckle, and health monitoring (HR, SpO₂, BP, body temperature). Designed for elderly care, child safety, asset tracking, and judicial monitoring.
What's the MOQ and lead time?
Minimum order is 100 units. Standard lead time is 25–35 days from PO confirmation to FOB Shenzhen. Sample units ship in 5–7 days for qualified buyers, and sample fees are refundable against the first bulk PO of 500+ units.
Which markets and certifications are supported?
CCC, ROHS, and IP68 are standard on every unit. CE and FCC are available on request and bundled into the unit cost for production runs of 500+ units. Anatel (Brazil), SRRC, IC (Canada), and KC (Korea) certifications can be added with extended lead time. We ship to 50+ countries.
Does the A9 work after 2G / 3G sunset?
Yes. The A9 is a 4G LTE Cat-1 device and does not depend on 2G or 3G networks. It supports FDD/TDD LTE bands for the EU (B1/B3/B7/B8/B20/B28A), US (B2/B4/B12/B13), and other regions. We can ship 4G-only firmware for markets where carriers have already shut down legacy networks.
How does the anti-tamper system work?
Four layers: a proprietary buckle with hidden screws that need a service tool to remove, capacitive skin-contact and open-circuit tamper sensors on the strap, real-time alerts pushed to the configured caregiver account, and an internal capacitor that holds up the modem long enough to send the tamper alert even if the main battery is yanked.
Do you support OEM / ODM customization?
Yes. We offer private-label firmware (logo, language, app branding, SOS routing), custom packaging, manuals, and accessory kits. RF and antenna can be tuned for regional carriers when volume justifies it. Standard OEM kits ship with multi-color straps and branded boxes.
Can the A9 be worn as an ankle GPS tracker?
Yes. The A9's anti-tamper buckle and 760 mAh battery are hardware-identical to dedicated ankle monitors used in judicial monitoring (court-supervised release, community correction, bail). For ankle-wear, we offer OEM-extended straps (28–32 cm vs. the standard 22–24 cm wrist fit). Geofence violations, tamper events, and route history log identically across wrist or ankle configurations. MOQ 100 units.
